Chaos Movies, Rossler

Bifurcations of the Rossler attractor with M M is a new coefficient placed in front of the unique nonlinear term A = 0.2, B = 0.2, C = 5.7 (as usual) and M inclines from 0.4 up to 1.4 in 100 steps Video resolution 720 x 480, 10 frames per second (10 seconds) Trajectory colored by speed (from blue up to magenta) Audio resolution 5391 samples per second Audio samples are the height Z at the Poincare section The mp4 video duration is 15 seconds (1 MB): M is a new coefficient placed in front of the unique nonlinear term; A = 0.2, B = 0.2, C = 5.7 (as usual) and M inclines from 0.4 up to 1.4 in 100 steps; Video resolution 720 x 480, 10 frames per second (10 seconds); Trajectory colored by speed (from blue up to magenta); Audio resolution 5391 samples per second; Audio samples are the height Z at the Poincare section; The mp4 video duration is 15 seconds (1 MB)

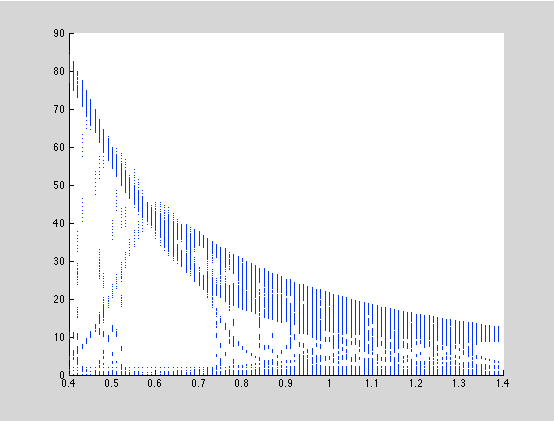

Response diagram Z vs M for this bifurcation sequence
